Contributing New Models/Features

Contributing New Models/Features on Modal

How to add a new model in Modal

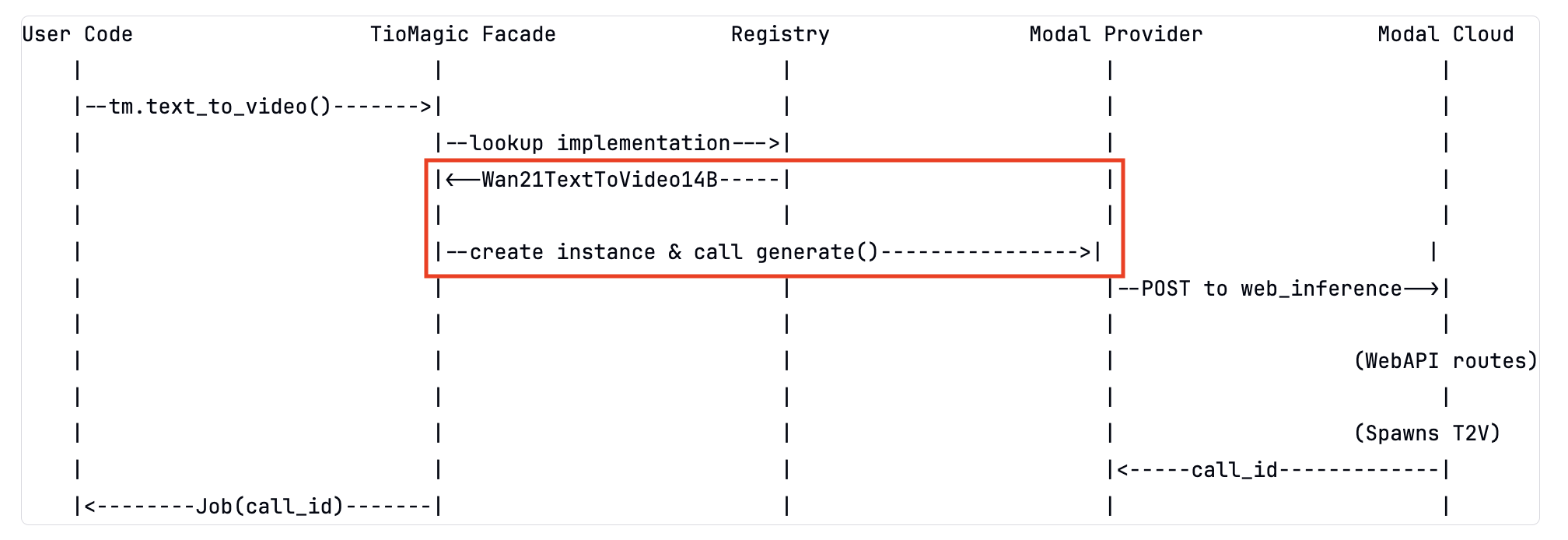

Above is the flow of a feature call. The class and methods outlined in red represent the interface between your local machine and Modal.

Contributing a new model only requires you to create the file that runs code on Modal and returns the user data.

1. Create a new .py file in src/tiomagic/providers/modal. This is where your modal code goes.
   • Refer to Structure of a Modal Provider file for a breakdown of an implementation
2. Add model to src/tiomagic/providers/modal/__init__.py
3. Add requirements schema to proper features file under src/tiomagic/core/schemas

And that’s it!

Structure of a Modal Provider file

If you are unfamiliar with deploying code to Modal, familiarize yourself with Modal documentation.

You can refer to src/tiomagic/providers/modal/wan_2_1_14b.py and its comments for a detailed description of a Modal Provider file. The docs are a high level description of a file:

Feature class (i.e. class I2V) consists of methods that run on modal:

• load_models - once the Modal container starts, method downloads and initializes the models and pipeline
• generate - this method executes the actual video generation using the loaded pipeline, saves the generated video to Modal’s volume storage, and returns the video as bytes
• handle_web_inference - when Modal receives a POST request to generate a video, this method makes the actual call to generate the video and returns to us a call_id, which is stored in generation_log.json

Modal Provider class (i.e. Wan21TextToVideo14B) prepares user data to send to Modal. This class serves as the local client that will communicate with Modal:

• __init__ - initializes the local client and sets references to the Modal app (name of the app, the app instance, the feature it is managing)
• _prepare_payload - prepares the data to send to Modal. If the model you are implementing requires a specific format or naming of variables for generation, here is a good place to make those adjustments.
  • Note that feature_type is set in the payload. This is used for routing and is removed from the payload before calling to generate.

Class WebAPI is the API that receives the POST request from the user and directs the request to the appropriate feature.

• For example, if a model is capable of 3 features, this one API reads what the feature_type is being requested and calls the appropriate Modal Provider class to spawn the correct generation

registry.register is a CRUCIAL function that links the feature/model/provider combination. If you don’t register each feature/model/provider combination, you will not be able to access this model and will run into errors.

How to add a new feature into an existing model

1. Read “Structure of a Modal Provider”
2. Create a new Feature Class
3. Create a new Modal Provider Class
4. Add the new feature into the WebAPI
5. Add your new feature/model/provider combination using registry.register

Contributing New Models/Features on Local

How to add a new model on local

1. Obtain the API key of the closed-source model you want to contribute
2. If there is a library you must pip install for the model, add it to the dependencies list under pyproject.toml
   • When testing locally, run pip install -e . again to ensure that the dependencies are updated
3. Add a new file under src/tiomagic/providers/local. This is where your implementation goes.
   • Refer to Structure of a Local Provider file for a breakdown of an implementation
4. Add model to src/tiomagic/providers/local/__init__.py
5. Add requirements schema to proper features file under src/tiomagic/core/schemas

Structure of a Local Provider file

Class ModelFeature (i.e. LumaRay2I2V):

• __init__ - collects API key from your .env file and initializes basic information about the implementation
• _prepare_payload - prepares the data to send to the model. If the model you are implementing requires a specific format or naming of variables for generation, here is a good place to make those adjustments.
  • Note that feature_type is set in the payload. This is used for routing and is removed from the payload before calling to generate.
• generate - the method that makes the generation request to the closed source model
  • Polling to wait for the generation to complete occurs here
  • Once the generation completes, saves video to output_videos folder

registry.register is a CRUCIAL function that links the feature/model/provider combination. If you don’t register each feature/model/provider combination, you will not be able to access this model and will run into errors.

How to add a new feature into an existing model

1. Read “Structure of a Local Provider”
2. Create a new ModelFeature Class
3. Add your new feature/model/provider combination using registry.register
